12 V ELECTRIC WINCH RS-12000 - 5440 kg - SYNTHETIC ROPE - ECO
| Technical information | |
| Supplier: | China |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Weight: | 32 kg |
| Pulling force: | 5440 kg (12000 lbs) |
| Power supply: | Electric (via battery or accumulator) |
| Voltage: | 12 V (DC) |
| Operation control: | Wired or wireless remote control |
| Motor: | 6,0 HP |
| Gear transmission: | Single-stage planetary |
| Gear ratio: | 265:1 |
| Dimensions: | 530 mm × 160 mm × 218 mm |
| Drum diameter and length: | 64 mm × 224 mm |
| Mounting area: | 254 mm × 114 mm |
| Pulling rope: | Synthetic rope (9,5 mm x 28 m) |
Description:
The RS-12000 (12V) electric winch is a powerful and reliable solution from our ECO line, designed for demanding and heavy-duty pulling applications. With a rated pulling force of up to 5440 kg (12000 lbs), it is suitable for off-road vehicles, SUVs, pickup trucks, trailers, boats, as well as forestry and construction work, and vehicle recovery in the most challenging conditions.
The RS-12000 electric winch is equipped with a synthetic rope, which is significantly lighter and safer to use than a steel wire rope, while also allowing easier handling and installation.
The winch operates on a 12 V DC power supply and achieves its maximum pulling force on the first layer of rope. As the number of rope layers on the drum increases, the available pulling force gradually decreases, which is characteristic of all drum-type winches.
Thanks to its robust construction and efficient drive system, the winch ensures smooth, controlled, and reliable pulling even under heavy loads.
Most common applications
- Vehicle recovery (recovering off-road vehicles, SUVs, and pickup trucks from mud, sand, snow, or steep terrain).
- Forestry work (pulling heavier logs, timber, and other large loads in demanding environments).
- Boats and trailers (assistance with pulling boats onto trailers or repositioning heavier trailers and equipment).
- Agricultural and construction work (moving heavy machinery, equipment, or materials where larger hydraulic or industrial winches are not available).
- Assembly and service tasks (precise positioning and alignment of heavy components).
Why choose a winch with a synthetic rope instead of a steel wire rope?
- significantly lower weight compared to steel wire rope,
- increased operational safety (reduced risk of snap-back),
- easier handling without sharp wire strands,
- corrosion resistance.
For higher loads, we recommend using a pulley to ensure safe and efficient operation.

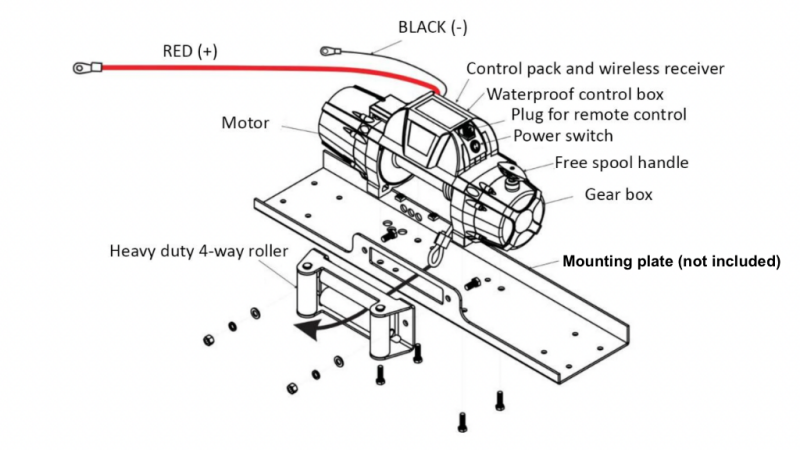

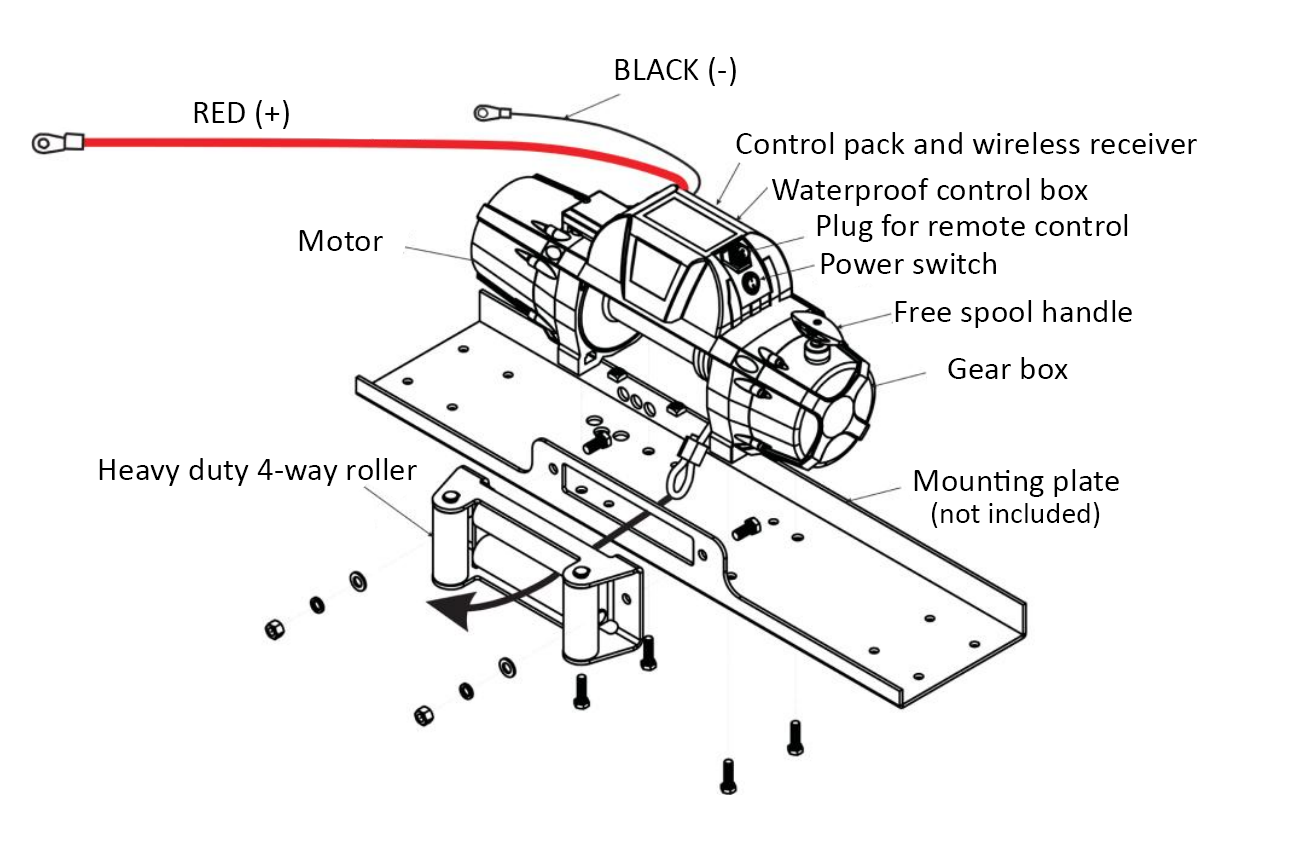

NOTE: A mounting plate is not included with purchase and must be purchased separately.
```
