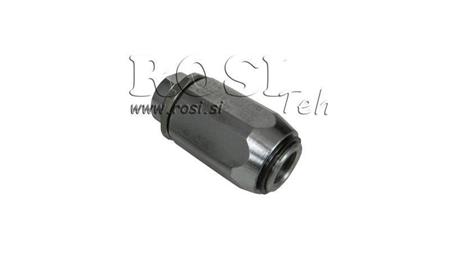

HOSE FLOW REGULATOR VRB - DAMPING VALVE 1/2" 2-WAY - 70LIT

Usage:

The valve acts as a flow regulator in both directions. Since the valve does not compensate for pressure in the free flow, the flow is largely dependent on the pressure and viscosity of the oil.

Material:

Housing: metal, galvanized
Seal: BUNA N standard
Closure: ball type

Connection:

Connect V to the pressure side and C to the actuator side. The flow is thus regulated from direction C back to V and free in the reverse direction. When using the valve with an actuator that already has a block valve, the valve must be connected between the actuator and the block valve. The flow is regulated by turning the valve; clockwise for greater flow, and counterclockwise for less flow. Once the desired flow is set, tighten the nut to prevent the desired value from deviating due to possible vibrations.
