HYDRAULIC CYLINDER MONO 80/70-1000
Article code:
14486
Price with VAT:
428,00 EUR
HYDRAULIC CYLINDER MONO 80/70-900
Article code:
14485
Price with VAT:
404,00 EUR
HYDRAULIC CYLINDER MONO 80/70-1000
Article code:
14486
Price with VAT:
428,00 EUR
HYDRAULIC CYLINDER MONO 80/70-900
Article code:
14485
Price with VAT:
404,00 EUR

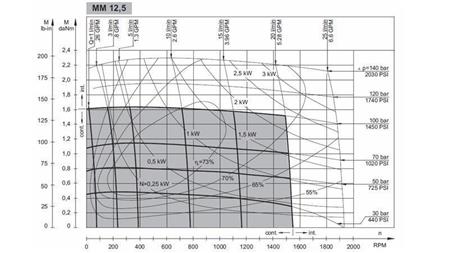

HYDROMOTOR MM 12.5 - FUNCTIONAL DIAGRAM
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDROMOTOR MM 12.5 - FUNCTIONAL DIAGRAM
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDRAULIC MOTOR MM 12.5
HYDROMOTOR MM 12.5 - FUNCTIONAL DIAGRAM

HYDRAULIC MOTOR MM 12.5

Article code:
11764
OEM:
9990000024797
Tax rate
22 %
Price without VAT:
120,49 EUR
Price with VAT:
147,00 EUR
Ref:
10
ADD TO CART
Supplier:
Turkey
Oil flow:
constant 20 L/min, max. 25 L/min
Return or exchange:
14 days
torque:
constant 1.6 Nm, with interruptions 2.3 Nm, max. 3.3 Nm
cm/revolutions:
12.9
connection thread:
3/8"
Revolutions:
constant 1550 rpm, with interruptions 1940 rpm
Product weight:
2 kg
Warranty:
6 months
pressure:
constant 105 bar, with interruptions 140 bar, max. 200 bar
power:
constant 2.4 kW, max. 3.2 kW

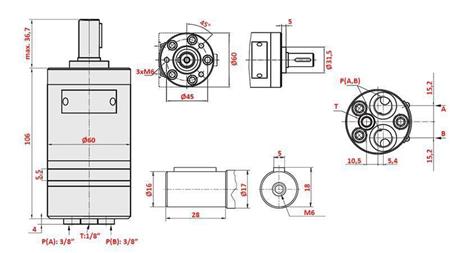

L

L1

[mm]

MM 8

104

3.5

MM 12.5

106

5.5

MM 20

109

8.5

MM 32

114

13.5

MM 40

117.5

17

MM 50

121.5

21



DIAGRAM 'MM 12.5'
